80Plus Bronze ATX650W with 14cm RGB fan
80Plus Bronze ATX650W with 14cm RGB fan
■80Plus Bronze (Effeciency: 82%-85%-82%)
■Complies with Intel ATX 12V V2.0
■14cm super silent RGB fan,better cooling,low noise(optional)
■Low-ripple and noise
■100% burn-in/vibration/Hi Pot/Leakage current Test.
■Multiple Protections with OCP.SCP,OVP/UVP/OPP
MTBF＞50,000 hours at 25℃"
■Complies with Intel ATX 12V V2.0
■14cm super silent RGB fan,better cooling,low noise(optional)
■Low-ripple and noise
■100% burn-in/vibration/Hi Pot/Leakage current Test.
■Multiple Protections with OCP.SCP,OVP/UVP/OPP
MTBF＞50,000 hours at 25℃"
OEM
110/230V
300W~800W Optional
Output Power | 650watts PSU |
| High efficiency | 82%-85%-82% |
| Certification | 80 PLUS BRONZE, CE, Rohs, FCC |
| PFC | Active Power Factor Correction. |
| Input | 115V/230V, 60/50 Hz |
| Fan | 120mm cooling fan(140mm optional), Low noise and ripple |
| Cable | High grade black wrapped cabling |
Feature | Support Multi-Core GPU |
| Intel ATX 12V 2.3 and EPS | |
| Double12V rail design to provide the best perormance | |
| Over voltage protection |
| Over power protection | |
| Over current protection | |
| Short Circuit protection | |
| Under voltage protection |
| Model: EZ500ATX | AC INPUT: AC230V/50HZ | ||||
| DC OUTPUT | +12V | +5V | +3.3V | -12V | +5Vsb |
| OUTPUT CURRENT | 44A | 13A | 13A | 0.3A | 2.5A |
| PK.OUTPUT CURRENT | 52A | 18A | 18A | 0.3A | 2.5A |
POWER | 529W | 105W | 16.1W | ||
| 634W | |||||
| 650W | |||||

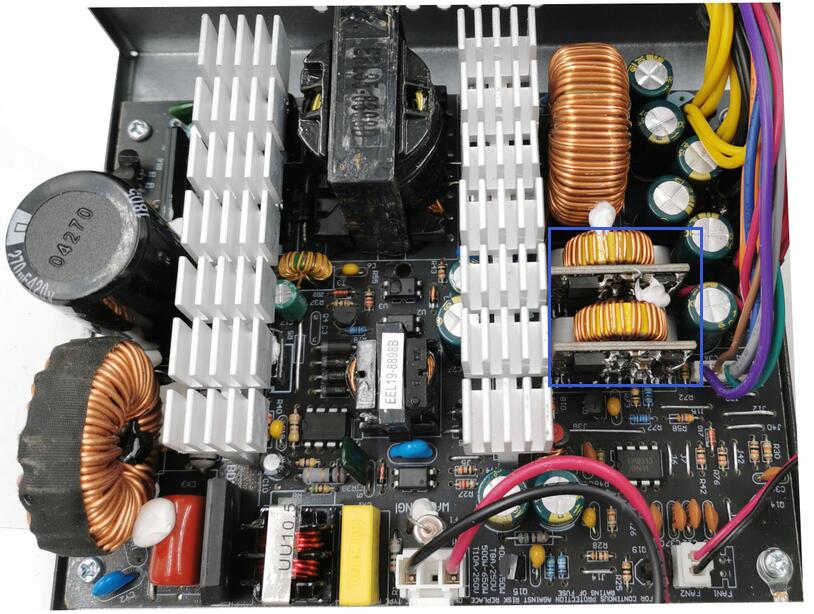

PCB Board:
Cable map:
Certifications
